Platform Cable USB II
X-Ref Target - Figure 16
V CCAUX
TDO
JTAG CHAIN
TDI
TMS
A
B
(4)
Y
TDI
TDO
S
TCK
A
(4)
TMS
TCK
V CCAUX
2-mm
(1)
B
Y
V REF
Connector
2
8
TDO
S
A
B
(4)
Y
S
TDI
10
V CCAUX
TMS
TCK
PGND (5)
4
6
13
Required
Pull-Up (3)
1 K Ω
MUX Truth Table
S Output
H Y=A
L
Y=B
GND (2)
*
DS593_16_021408
Notes:
1.
2.
3.
4.
5.
Example implies that V CCO , V CCJ , and/or V CCAUX for various devices in the JTAG chain are set to the same voltage.
Attach the following 2-mm connector pins to digital ground: 3, 5, 7, 9, and 11.
The cable uses an open-drain driver to control the pseudo ground (PGND) signal — an external pull-up resistor is required.
Assumes that the multiplexor supply voltages pins are connected to V CCAUX .
Pin 13 is grounded on legacy Xilinx USB cables (models DLC9, DLC9G and DLC9LP), and Parallel Cable IV (model DLC7). These cables
need to be manually detached from the 2-mm connector to allow the primary configuration source to have access to the JTAG chain.

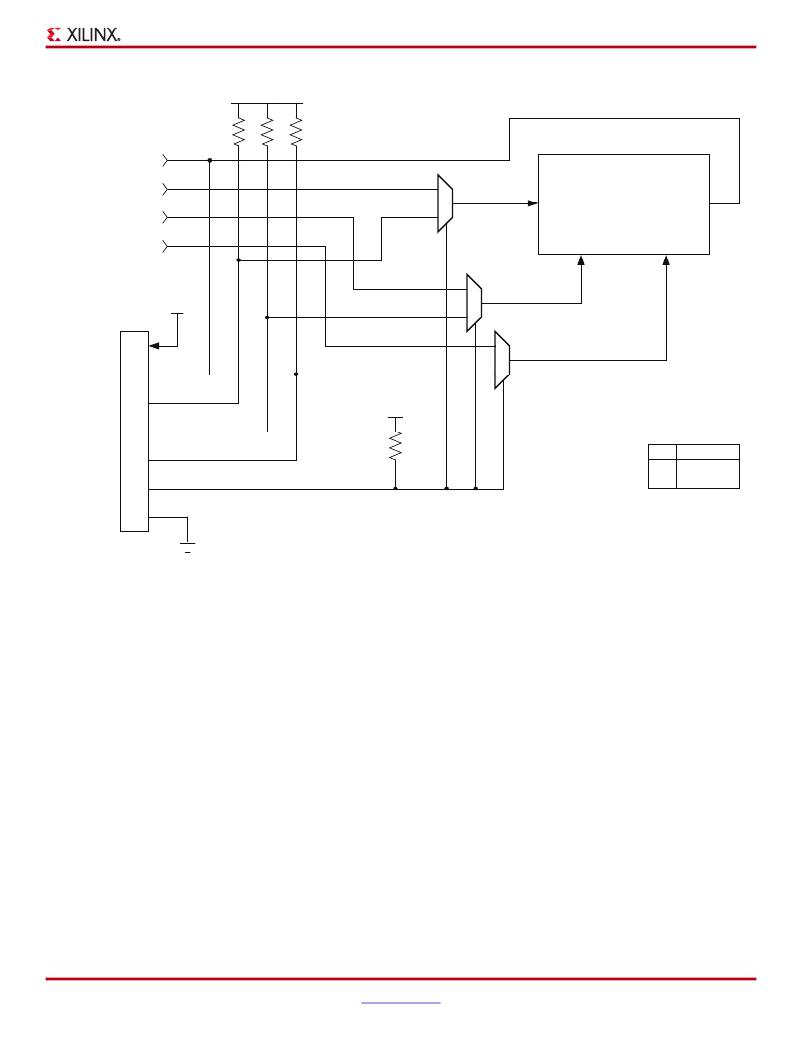

Figure 16: Example Using PGND in a JTAG Chain
DS593 (v1.2.1) March 17, 2011
www.xilinx.com
16
